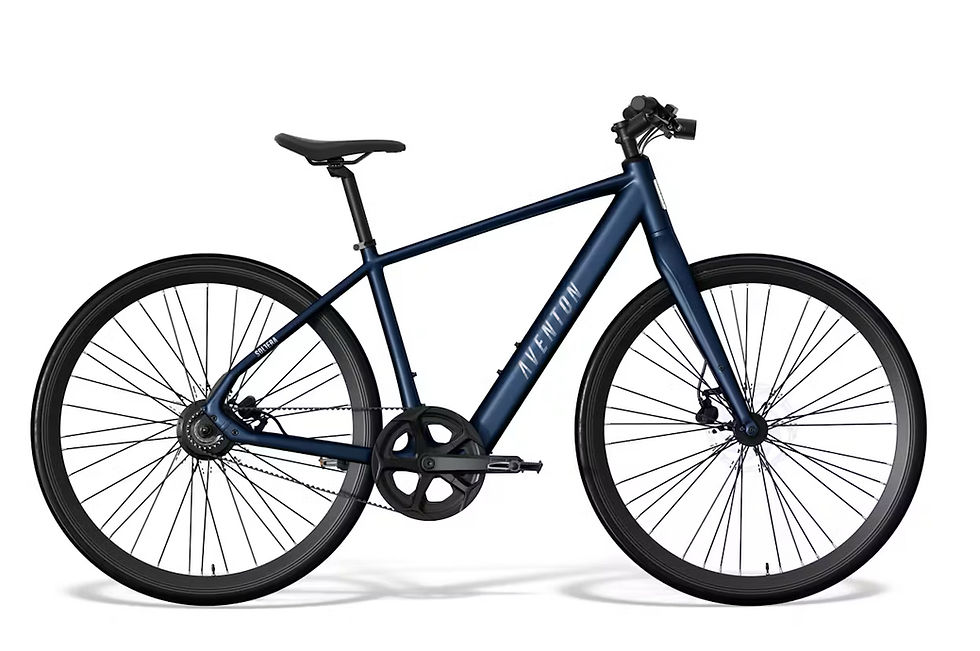

AVENTON SOLTERA 3 ADV

Technical Specifications

MOTOR 36V, 350W (Nominal) brushless rear hub motor	THROTTLE Throttle on Demand - Throttle from a complete stop	DISPLAY BC280 LCD Easy Read Color Display with Backlight and app sync functionality
SPEED Up to 20 MPH on Pedal Assist & Throttle	BATTERY Removable Integrated Lithium-Ion 36V, 9.6Ah with LG cells	SENSORS Cadence Sensor, Speed Sensor
PEDAL ASSIST 5 Levels	CHARGER 36V, 2 amp fast charger	RANGE 41 Miles Average
FRAME 6061 Double-Butted Aluminum Alloy with Internal Battery	WEIGHT Soltera Single Speed - 41 lbs Soltera 7 Speed - 43 lbs	PEDALS 9/16' Alloy Platform
FORK AE-E09 Soltera AL fork	WEIGHT LIMIT Maximum Payload Capacity: 300 lbs	KICKSTAND Included, Rear Mount
BOTTOM BRACKET Square Taper, Sealed	CRANKSET 170mm w/ 48 T	REAR DERAILLEUR Soltera Single Speed - N/A Soltera 7 Speed - Shimano RD-TY300D
CASSETTE Soltera Single Speed - Single Speed Soltera 7 Speed - 7 Speed	Twist Shifter Soltera Single Speed - N/A Soltera 7 Speed - 7 Speed	BRAKES Soltera Single Speed - Tektro Caliper Brake (700C) Soltera 7 Speed - Tektro Mechanical Disc Brakes, 160mm Rotors
CHAIN Soltera Single Speed - Single Speed Soltera 7 Speed - 7 Speed	RIM Aluminum 36h Front & Rear	SPOKES Black Stainless 13 Gauge
TUBES Butyl Rubber, French Valve	HUBS 36H Nutted Front and Rear	TIRES 700c*35c Kenda K193
SADDLE SelleRoyal	SEATPOST Forged Alloy, 27.2mm, 2-Bolt Clamp	STEM Threadless, 31.8mm, 7 Degree Rise
SEAT CLAMP Quick Release	HANDLEBARS Aluminum 31.8mm,620mm	HEADSET Sealed Bearing Headset
GRIPS Ergonomic Comfort	LIGHTS Front and rear lights integrated

The Soltera ships as a Class II ebike, with pedal assist and throttle going up to 20 MPH . The Soltera will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Unplugging and removing the throttle from the Soltera will meet the requirements needed to be classified as a Class I ebike.

Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. Which means it’s OK to ride or park your ebike in the rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike.

Size & Fit

The Soltera comes in 2 sizes to suit most adults.

Regular 5'3" - 5'10"

Large 5'10" - 6'4"

Frame Size	Soltera Regular	Soltera 7 Regular	Soltera Large	Soltera 7 Large
Top Tube Length	558mm	577mm
Reach	398mm	414mm
Head Tube Length	140mm	150mm
Standover Height	791mm	828mm
Wheelbase	1042mm	1052mm
Min Saddle Height	915mm	975mm
Max Saddle Height	1050mm	1120mm
